Three Roll Calender

Rubberizing and fractioning of textile material, rubberizing of wire cord fabric, sheet and counter plate (embossed) of rubber material, separation of fabric and films, as well as joint of multi-layer laminate film.

Keyword:

Laboratory Equipment

Categories:

Rubber Calender

Tel：

+86-13190159633

Get a quote

Application of Three Rolls Rubber Calender

Feature of Three Rolls Rubber Calender

1. The roller is made of Chilled Cast Iron alloys, whose work surface has high hardness, wear-resistance and durable life. Steam, cooling water and heat-conducting oil can pass into the roller’s cavity, so that the working temperature can be adjusted in order to meet the technological requirements.

2. Roll spacing can be adjusted both by manual or electric mode.

3. Roller bearings’ lubricating can adopt drier oil or dilute oil

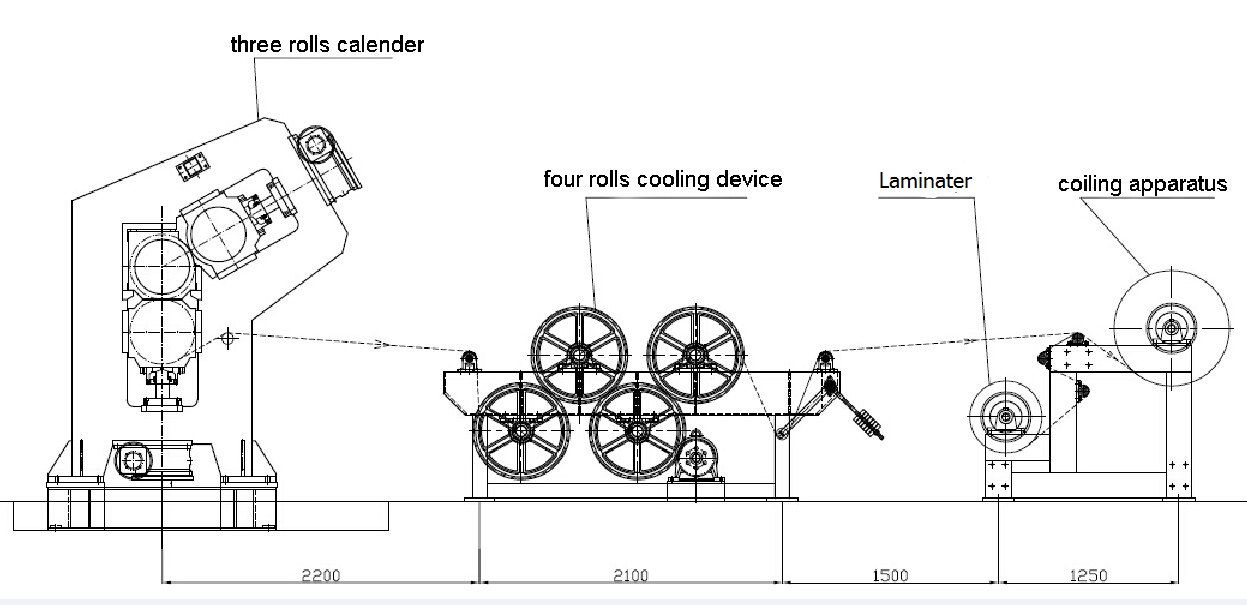

Production line of Three Rolls Calendering, cooling, and coiling:

Specifications of Three Rolls Rubber Calender:

Model	XY-3F300	XY-3F360	XY-3F400	XY-3F450	XY-3F560	XY-3F610
Specification	XY-3F300	XY-3F360	XY-3F400	XY-3F450	XY-3F560	XY-3F610
Roller diameter x length(mm)	300X900	360x1120	400x1400	450x1500	560x1700	610x1730
Mid-roller linear speed (m/min)	2~16.33	0~22.155	0~20	2~24.99	0~30	0~30
Minimum thickness of calendaring (mm)	≥0.20	≥0.20	≥0.20	≥0.20	≥0.20	≥0.20
Width of calendaring (mm)	≤700	900	1200	≤1300	≤1500	≤1500
Power of main motor (KW)	22	40	55	75	110	132
Overall dimension(mm)	3700	4700	5200	6400	7000	7500
	1280	1700	1860	2200	2600	2700
	2050	2100	2100	2900	3700	3830
Weight (Kg)	6000	11600	15000	20000	38000	45000
